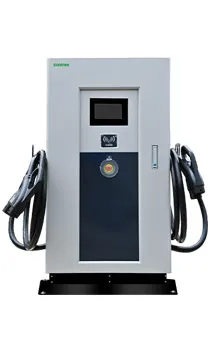

Fast Evcharging Station

DC Fast Evcharging Station

• 30KW / 40KW / 60KW / 120KW / 150KW / 180KW

• GBT27930 / CHADEMO 2.0/ DIN 70121 / OCPP 1.6J / ISO 15118

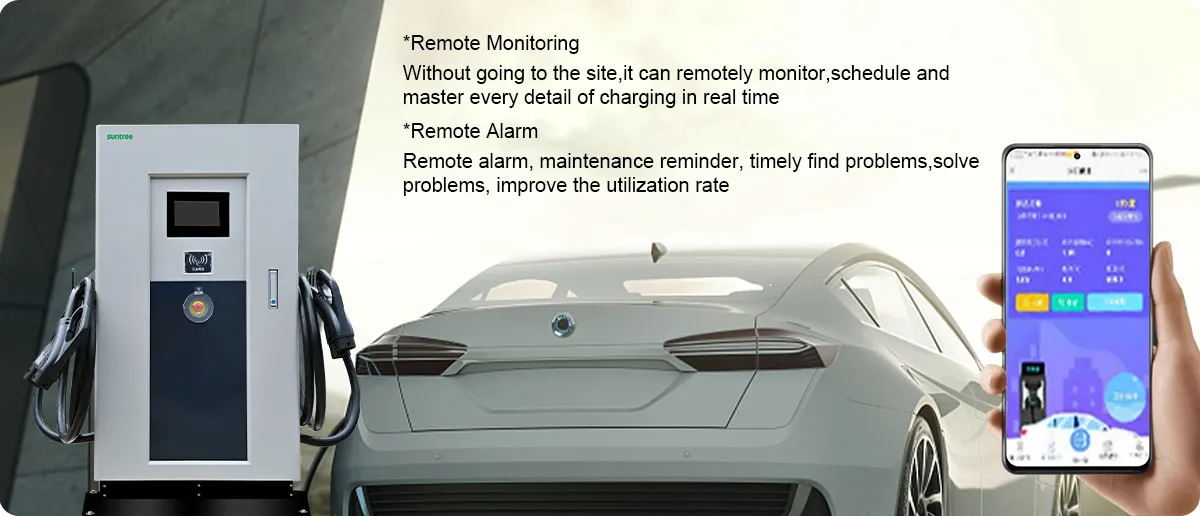

• Connect to OCPP / cloud fast charge

• Support the operation of scanning code and swiping card

• Low standby power consumption, the standby power consumption of the whole machine is less than 5w,
   reducing operating costs;

• Wide output voltage range, 200V~750V, applicable to more models;

• Compatible with DC input, wider application scenarios;

• High power density, smaller volume and smaller footprint;

• Reasonable air duct design ensures that the temperature difference between inside and
   outside the inlet is less than 3 degrees;

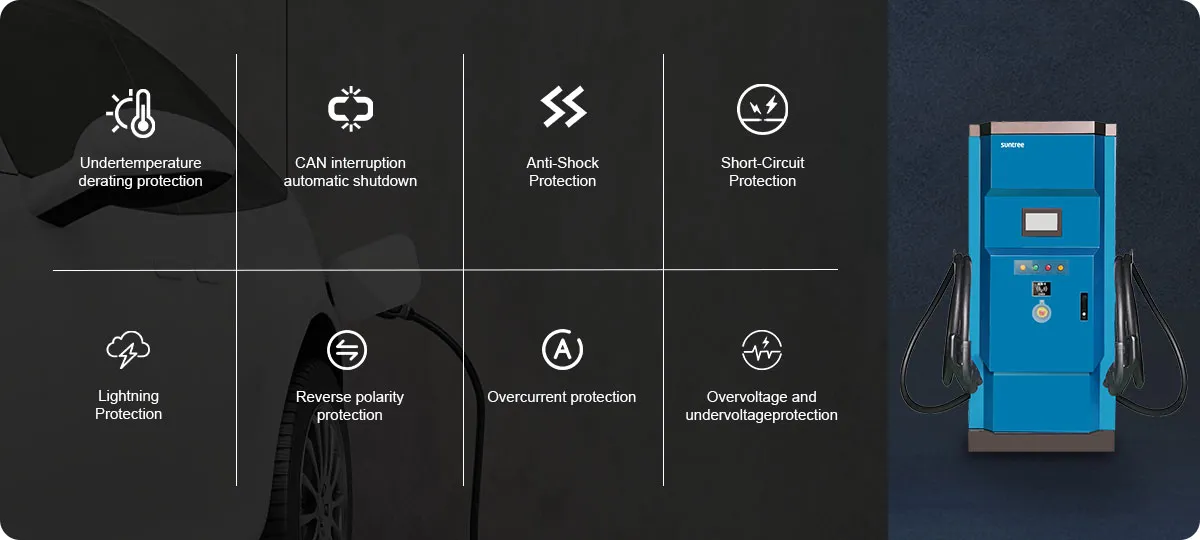

• Perfect safety protection, disconnect AC side when emergency stop, more reliable;

• Flexible UI customization, which can customize UI interface style according to customer needs;

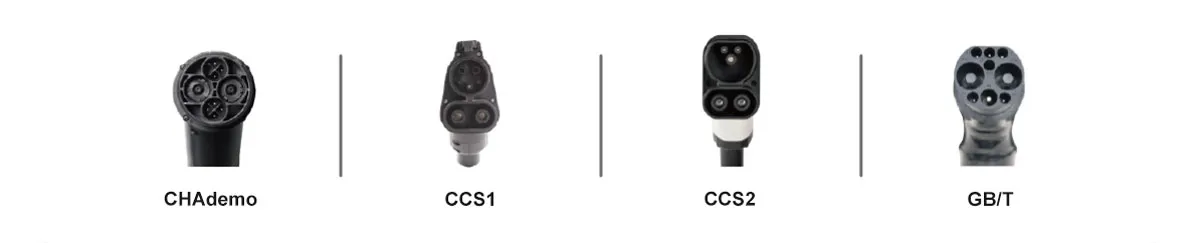

DC Charging Gun Applicable standard
GBT20234/EN62196/EN61851-1,JEVSG 105/CHADEMO

ELECTRICAL TECHNICAL REFERENCE

DETAILED SPECIFICATIONS
Model XC430DADMVS-EJ XC440DADMVS-EE XC460DADMVS-EE XC460DADMFS-EE XC4120DADMFS-EE XC4150DADMFS-EE XC4180DADMFS-EE
In putvoltge AC380V±20%
Output voltag 200-750V (200-1000V optional)
Input Current 45A 60A 95A 95A 190A 230A 285A
Output Current 100A 120A 200A 0-200A 0-250A
Freq uency 40-60Hz
Rated power 30KW 40KW 60KW 60KW 120KW 150KW 180KW
Gun quantity 2
Charging way Quick or Slow charge automatic switch
Charging mode SWIPE CARD, APP. MANUAL
Lable leggth 5M
Interface 7"COLOR TOUCH SCREEN+IC CARD CONTACLESS CARD READER
Network con nection Standard configuration: CAN/485/Ethernet Selective configuration: GPRS/4G
Display information 1350×690×240 1750×620×780
Size (mm) 100KG 60KW 120KW 150KW 180KW
Weight SAE J1772 (Type 1) / 1EC62196 Type2
Temperature -20℃~+50℃
Altitude 2000M
IP LEVEL IP54
Humidity 5%-90%RH, non-condensiong
Inputcable length 0M (CUSTOMIZED ACCEPTABLE)
Cable Length 5M (CUSTOMIZED ACCEPTABLE)
standard GBT2024 / EN62196 / EN61851-1, JEVSG 105/CHADEM O
Protocol GBT27930 / CHADEMO 2.0 / DIN 70121, OCPP 1.6 (JSON), ISO 15118
